Needle Valves

Forged Integral Bonnet Needle Valves

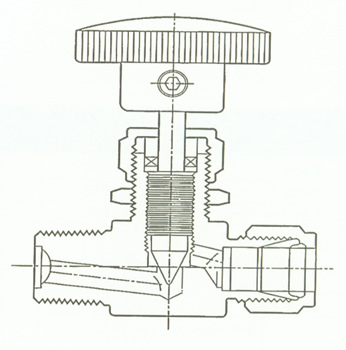

SPECIFICATION

CONNECTION : TUBE FITTING

MAX OPERATION TEMPERATURE : -50°c ~ +232°C

MAX OPERATION PRESSURE

ASTM A182 F316 : 5000PSIG

BRASS : 3000PSIG

AVAILABLE WITH PLASTIC OR SS/ALUMINIUM BAR HANDLES.

Nuclear and Defense industry

___________________________________________________________________________________

SPECIFICATION

CONNECTION : FEMALE THREAD (BSP/NPT)

MAX OPERATION TEMPERATURE : -50°c ~ +232°C

MAX OPERATION PRESSURE

ASTM A182 F316 : 5000PSIG

BRASS : 3000PSIG

AVAILABLE WITH PLASTIC/SS BAR HANDLES

SIZE RANGE 1/8” UPTO 1”

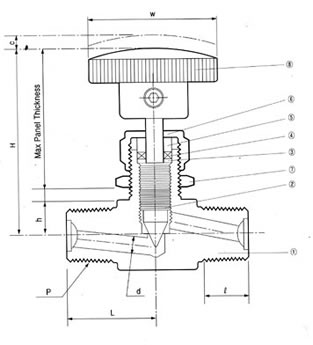

MATERIALS OF CONSTRUCTIONS

No.	Description		SS316 VALVES	BRASS VALVES
1.	BODY		316SS	BRASS
2.	STEM		316SS	BRASS
3.	PACKING RING		316SS	BRASS
4.	PACKING		TFE	TFE
5.	PACKING GLAND		316SS	316SS
6.	PACKING NUT		316SS	BRASS
7.	LOCK NUT		316SS	BRASS
8.	HANDLE	STANDARD	P.C	P.C
8.	HANDLE	ALTERNATIVE	316SS(BAR)	BRASS(BAR)

___________________________________________________________________________________

SPECIFICATION

CONNECTION : MALE THREAD (BSP/NPT)

MAX OPERATION TEMPERATURE : -50°c ~ +232°C

MAX OPERATION PRESSURE

ASTM A182 F316 : 5000PSIG

AVAILABLE WITH PLASTIC/SS BAR HANDLES

SIZE RANGE 1/8” UPTO 1”

MATERIALS OF CONSTRUCTIONS

No.	Description		SS316 VALVES	BRASS VALVES
1.	BODY		316SS	BRASS
2.	STEM		316SS	316SS
3.	PACKING RING		316SS	BRASS
4.	PACKING		TFE	TFE
5.	PACKING GLAND		316SS	316SS
6.	PACKING NUT		316SS	BRASS
7.	LOCK NUT		316SS	BRASS
8.	HANDLE	STANDARD	P.C	P.C
8.	HANDLE	ALTERNATIVE	316SS(BAR)	BRASS(BAR)

All Dimensions are for reference only, and are subject to change without prior Notice
Sizes and types other than featured above are available on request.
